Tactile Leica Disto D810 Touch screen with Trotec Laser Rangefinder

Télémètre Laser Leica Disto Trotec D810 Touch avec Ecran Tactile View larger

Reduced price!

741,38 € tax incl.

-5%

780,40 € tax incl.

Visa, CB, MasterCard, 3-D S, Maestro, Amex, Transfert, Paypal, Stripe, Payplug, Delupay, Klarna, Revolut, 2x-3x-4x-6x Transfert & CB
Visa, CB, MasterCard, 3-D S, Maestro, Amex, Transfert, Paypal, Stripe, Payplug, Delupay, Klarna, Revolut, 2x-3x-4x-6x Transfert & CB

By buying this product you can collect up to 74 loyalty points. Your cart will total 74 points that can be converted into a voucher of 14,80 €.


Tactile Leica Disto D810 Touch screen with Trotec Laser Rangefinder.
The first in the world with touchscreen laser rangefinder.

More details

Online only

D810

New product

More info

Tactile Leica Disto D810 Touch screen with Trotec Laser Rangefinder.
The first in the world with touchscreen laser rangefinder.

Unique in the world!
DISTO™ D810 touch with touch screen!

In addition to the touchscreen function, for quick and intuitive to use and function of triggering of the measures the Disto™ D810 touch also offers you the opportunity possible to determine all the dimensions of an object directly from the photo taken with the built-in camera and create a photographic documentation.

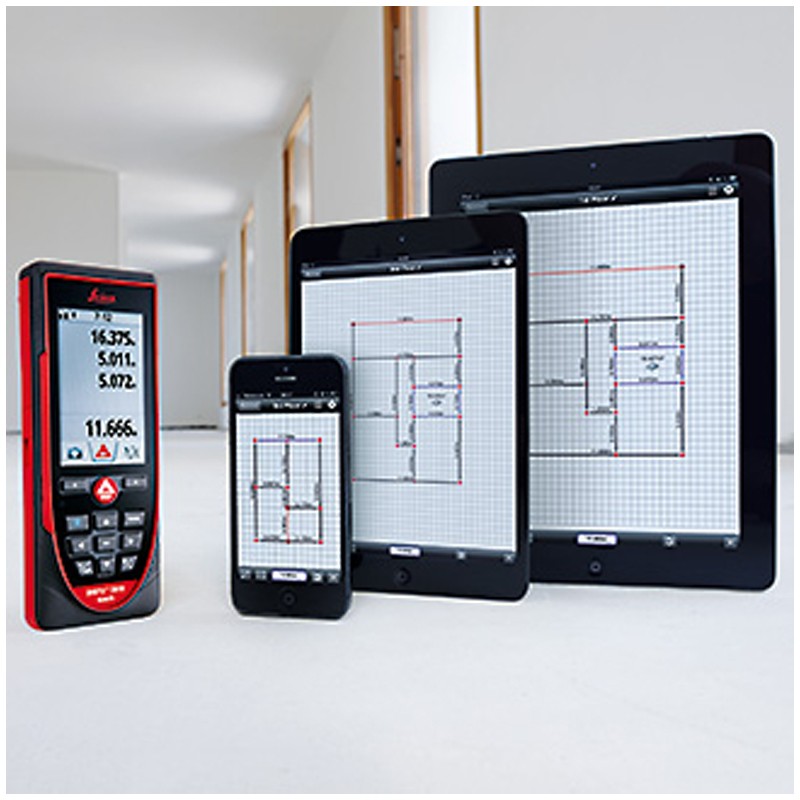

The Disto™ D810 touch functions are ideally complemented by the intelli-gente and free application "Leica Disto™ sketch.

DISTO™ D810 touch - the smart solution for measurements and documentation!

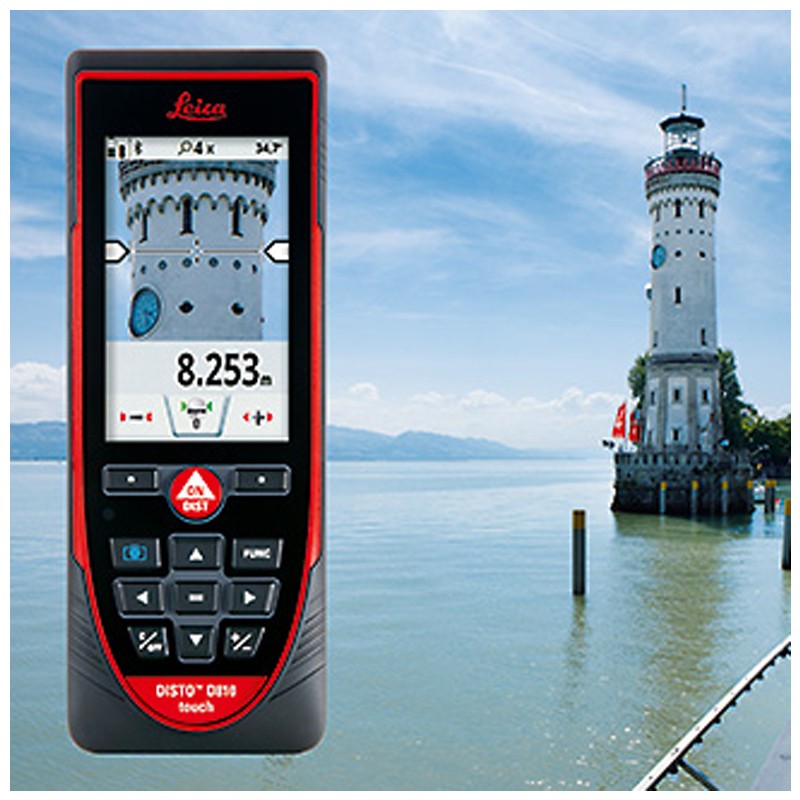

A revolutionary technique - the image extent
It has never been so easy to determine the width, height, surface, or even the diameter of an object. Taking measure of the object in a right angle is sufficient. Then, the desired result is marked by two arrows on the image and the value appears on the screen.

For large objects, in addition to the degrees of zoom of the scope, there is an observation camera.

Simply touch it
Thanks to its gestural control, the large touch screen of the Disto™ D810 touch allows fast and intuitive functions. Moreover, measures can also be triggered directly via the touch screen. This avoids an uncontrolled movement of the Disto™ D810 touch during a measurement operation.

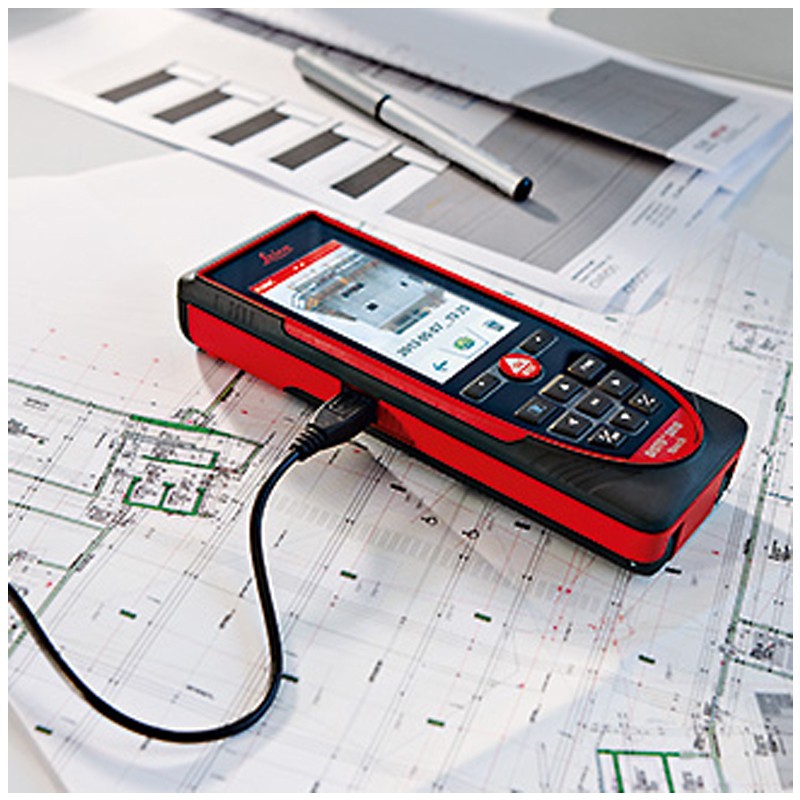

Flexible data transfer
In keypad mode, you can connect your Disto™ D810 touch to your computer and send the measured values in the form of a keyboard input to a program of your choice.

Technical features:
General information
Item number: 3.510.001.200
Restraining order
Min. range: 0.05
Typical max.: 200 m (660 feet)
In adverse conditions: 80 m (260 feet)
Resolution: 0.1 mm (1/32 inch)
Typical measurement tolerance: ± 1.0 mm (1/16 inch)
Maximum measuring tolerance: ±2, 0 mm (0.08 inch)
Measurement of inclination
Measuring range: 360 °
Precision compared to the laser beam:-0, 1 ° / + 0, 2 °
Precision compared to the casing: ±0, 1 °
Laser
O point laser at a distance 10 m [mm]: 6
O point laser at a distance 50 m [mm]: 30
O point laser at a distance of 100 m [mm]: 60
Laser class: 2
Organization of memory
Consultation of the last measurements: 30 Displays
Internal flash memory: standard equipment
Camera supervision
Resolution for photos: 900 x 800 dpi
Screen resolution: 240 x 400 dpi
File format: JPG
Unit
Push buttons: standard equipment
Touchscreen: standard equipment
Membrane keyboard: not available
Interfaces
Bluetooth: standard equipment
USB: standard equipment
Software
Option - Software: standard equipment
Models of enclosures
Plastic: standard equipment
Index of protection
IP54: standard equipment
IP65: not available
Power supply
internal battery: standard equipment
Measurements per battery set: ~ 4 000
[H] load time: ~ 4
Nominal voltage [V]: 3.7
Capacity [Ah]: 2.6
Output voltage [V]: 5.0
Load current [A]: 1
Ambient conditions
Operation - temperature [° C] min.:-10
Operation - temperature Max [° C]: 50
Stock - Temperature [° C] min.:-25
Stock - Temperature [° C] maximum: 70
Loading storage - temperature [° C] min.:-10
Loading storage - temperature [° C] maximum: 40
Dimensions
Length (without package) [mm]: 164
Width (without package) [mm]: 61
Height (without package) [mm]: 31
Weight
(without packaging) [kg]: 0,238

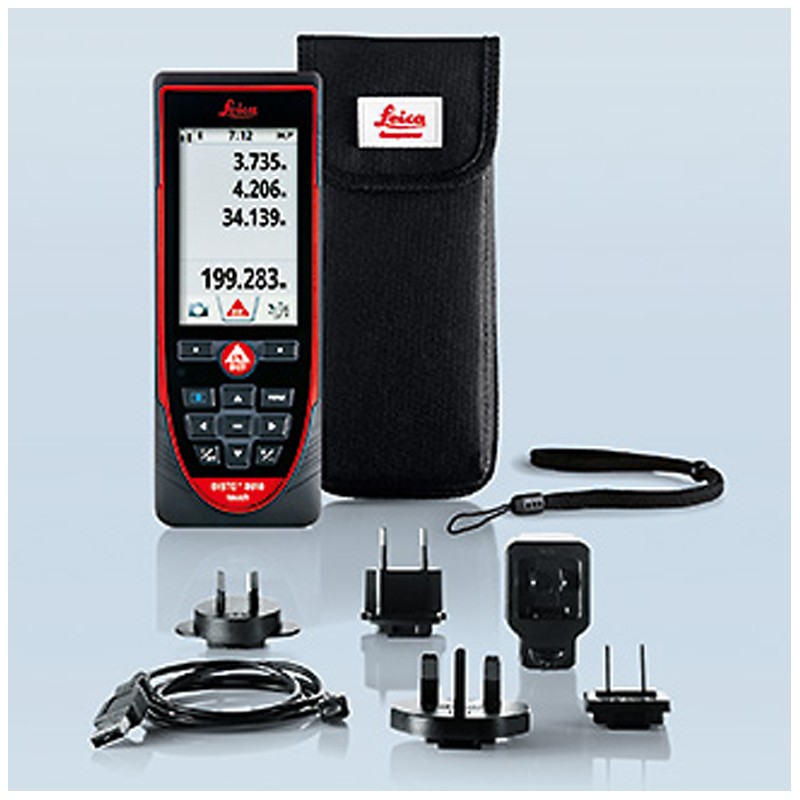

CONTENT OF STANDARD DELIVERY
Content of standard delivery
Measuring device: standard equipment
Certificate of manufacture: standard equipment
Bag/cover: standard equipment
Strap: standard equipment
Software: standard equipment
USB charger, 4 outlets included: standard equipment
Battery: standard equipment
Operating manual: standard equipment
Target table: not available

MEASURABLE QUANTITIES AND FUNCTIONS
Internal sensors
Distance [m]: standard equipment
[Walk]: standard equipment
[In] distance: standard equipment
Surface [m²]: standard equipment
Surface [States]: standard equipment
Surface [in²]: standard equipment
Volume [m³]: standard equipment
Volume [ft³]: standard equipment
Volume [in³]: standard equipment
Tilt [°]: standard equipment
Tilt [%]: standard equipment
Tilt [mm/m]: standard equipment
Tilt [in/ft]: standard equipment
Distance [yd]: not available
Features and equipment
Power Range Technology: standard equipment
Smart Horizontal Mode: standard equipment
Display maximum value: standard equipment
Display minimum value: standard equipment
Continuous measurement: standard equipment
Addition: standard equipment
Subtraction: standard equipment
Measure the surface: standard equipment
Measure of the volume: standard equipment
Function of picket: standard equipment
Indirect measurement by Pythagoras: standard equipment
Painter (surface with partial measures) function: standard equipment
Function triangle and solid angle: standard equipment
Tracking of heights: standard equipment
Measuring horizontal distance over obstacles: standard equipment
Indirect measurement using the tilt sensor: standard equipment
Tilt action: standard equipment
Measures of the elevation profile: standard equipment
Bluetooth transmission: standard equipment
Navigation for Bluetooth transmission keys: standard equipment
Digital riflescope to zoom 4 x: standard equipment
Tripod socket: standard equipment
Automatic: standard equipment
Display lighting: standard equipment
Multifunction Tip: standard equipment
Compass feature: standard equipment
Leica Disto sketch - free app for iOS/Android: standard equipment
Measure inclined objects: standard equipment
Integrated observation camera: standard equipment
Images/screenshots: standard equipment
Gallery with download USB: standard equipment
Measure image: standard equipment
Calculator: standard equipment
Diameter: standard equipment
Width: standard equipment
Surface of photo: standard equipment
Long Range Mode: standard equipment
Custom favorites: standard equipment
Timer: standard equipment
Display of average values: not available
Memory of the constants: not available
Standard deviation: not available
Acoustic alarm function: not available
Auto power off: not available

Warranty: 2 years
